Goal

Build a left-right (L-R) registration of the fly brain: a diffeomorphism that maps one hemisphere onto the mirror image of the other, so structures on the left can be compared directly with their counterparts on the right. This is the package-native, Deformetrica-4 re-implementation of the FAFB L-R bridging registration in flyconnectome/deformetricaLR.

Here we register the whole FAFB brain surface to its own mirror image — the flipped brain (red) flows onto the original (grey) under the fitted diffeomorphism, correcting the brain’s L-R asymmetry:

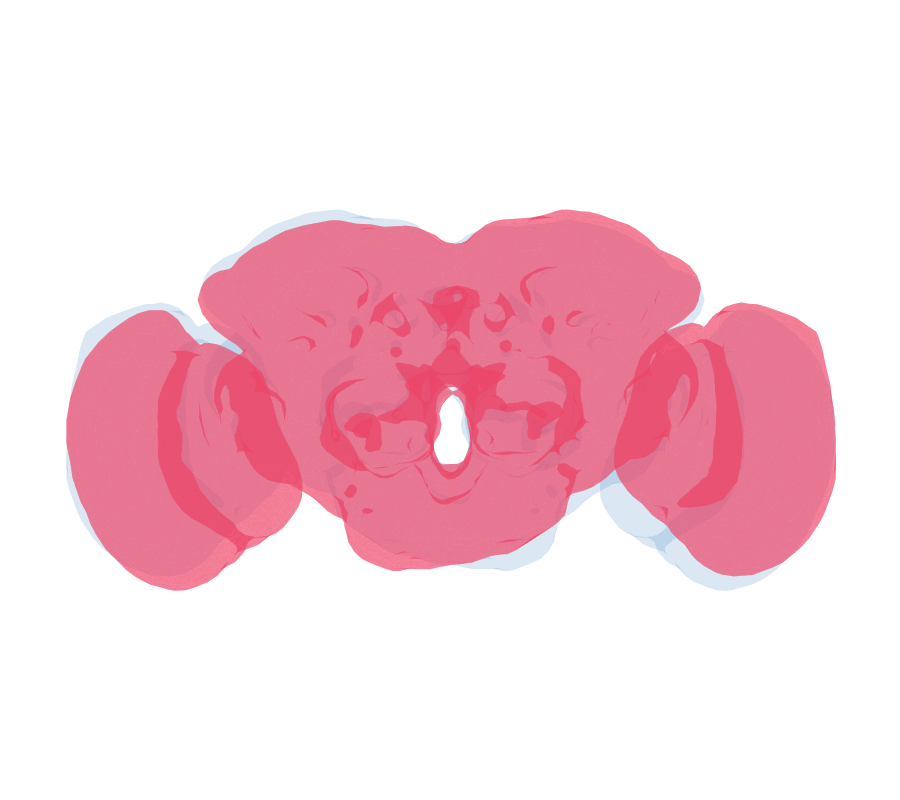

FAFB brain surface: the mirror image warping onto the original.

library(deformetricar)
library(nat)
library(elmr)     # elmr::FAFB.surf, the FAFB brain surface
library(Rvcg)     # mesh decimation

1. The FAFB brain and its mirror

brain <- as.mesh3d(elmr::FAFB.surf)          # FAFB whole-brain surface
xyzmatrix(brain) <- xyzmatrix(brain) / 1000  # nm -> um: Deformetrica needs ~O(1-100) coords

## Reflect across the brain's X-midline; flip face winding so normals stay outward
## (SurfaceMesh / Current attachment uses them).
V <- t(brain$vb[1:3, ]); midX <- mean(range(V[, 1]))
mir <- brain
mir$vb[1, ] <- 2 * midX - brain$vb[1, ]
mir$it <- mir$it[c(2, 1, 3), ]

2. Deformetrica surface registration (flipped → original)

Decimate both surfaces, then fit one diffeomorphism mapping the flipped brain onto the original (SurfaceMesh + Current — no vertex correspondence needed). The kernel width is set from the bounding box so the control-point grid stays bounded.

src <- Rvcg::vcgQEdecim(mir,   tarface = 4000)   # flipped (moving)
tgt <- Rvcg::vcgQEdecim(brain, tarface = 4000)   # original (fixed)
kw  <- sqrt(sum((apply(V, 2, max) - apply(V, 2, min))^2)) / 15

fit <- deformetrica_register(src, tgt, kernel_width = kw, timepoints = 15,
                             max_iterations = 100, device = "auto", verbose = TRUE)

3. Apply + GIF of the L-R flow

deformetrica_shoot() flows any object through the fitted diffeomorphism (returning the same class you give it). With flow = TRUE it returns every geodesic timepoint, which ggplot_flow_gif() animates with nat.ggplot: the flipped brain (red) flowing onto the translucent original.

flow <- deformetrica_shoot(mir, fit, flow = TRUE)   # `fit` is a portable deformetricareg

ggplot_flow_gif(list(mirror = flow), cols = c(mirror = "#EE4266"), alpha = 0.45,
                volume = brain, volume_col = "#2C7FB8", volume_alpha = 0.09,
                rotation_matrix = diag(c(1, -1, 1, 1)),   # dorsal-up frontal view
                file = "fafb_left_right.gif")   # needs gifski or magick

4. Validation — does the warp tighten the L-R match?

The registration is good if the warped mirror brain sits closer to the original than the raw flip does. Score with the symmetric surface distance.

final    <- nat::xform(mir, fit)                     # apply the fit as a nat transform
d_flip   <- Rvcg::vcgClostKD(nat::xyzmatrix(mir),   brain)$quality
d_warped <- Rvcg::vcgClostKD(nat::xyzmatrix(final), brain)$quality
c(flip = median(abs(d_flip)), warped = median(abs(d_warped)))   # warped should be smaller

Registering matched neuron tracts instead

deformetricaLR built its L-R registration not from the brain surface but from a set of matched cognate neuron tracts — one diffeomorphism fit to many objects at once. deformetrica_register_multi() does exactly that, and mixes object types (meshes, neurons as polylines, point sets):

# sources / targets: named lists of matched objects (e.g. left/right cognate neurons)
fit <- deformetrica_register_multi(
  sources = list(DA1 = right_DA1, MB = right_MB),
  targets = list(DA1 = left_DA1,  MB = left_MB),
  kernel_width = 15,
  landmarks = list(source = lm_right, target = lm_left))   # optional global anchor
